Searching for Parts
Once you have selected a product, you can search for a part by FIG, FIGKEY, part name or number. If you have not yet navigated to a catalog, you can search for parts by full part number only.
Tip: You can perform a global search for History or Supersession without first setting the catalog.
- Type your search criteria (two characters minimum):

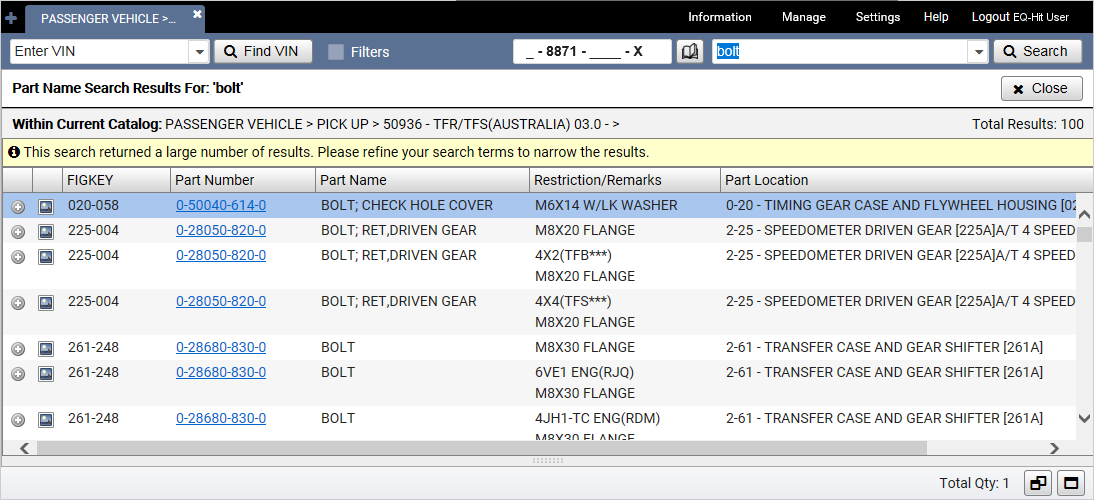

- Click the Search button or press the ENTER key. The search results appear:
- Click a part description from the list to go directly to the appropriate parts list and illustration.
Understanding the Search Results
| Element | Function |
|---|---|
|
Click this icon to add the part to the current picklist. |
|
Click this icon to see a preview of the Illustration without leaving the search results. |
|
Click the blue underlined part number to open the part details display. |
| BOLT | Click anywhere in the search result except the part number to go directly to the appropriate parts list and illustration. |
Search Tips
Part Number Format: Part number searches will vary, depending on whether you have selected 8-digit or 10-digit part number format in the Product Settings.
You can use spaces, punctuation, and Boolean operators to enhance the accuracy of your search.
| Search Terms Entered | Result |
|---|---|
| water pump | All parts that include both "water" and "pump." |
| water,pump | All parts that include both "water" and "pump." |
| water AND pump | All parts that include both "water" and "pump." Note: You must use the English version of "AND." Translated versions will not work. |
| water OR pump | All parts that include either "water" or "pump." Note: You must use the English version of "OR." Translated versions will not work. |
| waterpump | All parts that include "waterpump" but not those that include only "water" or "pump" by itself. Note: This applies even in languages that do not normally put spaces or punctuation between words. |
| water PUMP | All parts that include both "water" and "pump." Lowercase and Uppercase letters are interchangeable in searches in Latin and Cyrillic alphabets. |
Using Search History to Repeat a Search
EQ-Hit records the last 15 search terms entered into the search field.
- Click the search box arrow to open the list of previous searches.
- Click the previous search you wish to repeat.
