Navigating EQ-Hit

All major EQ-Hit features can be accessed from the main EQ-Hit screen.

Navigation Menus

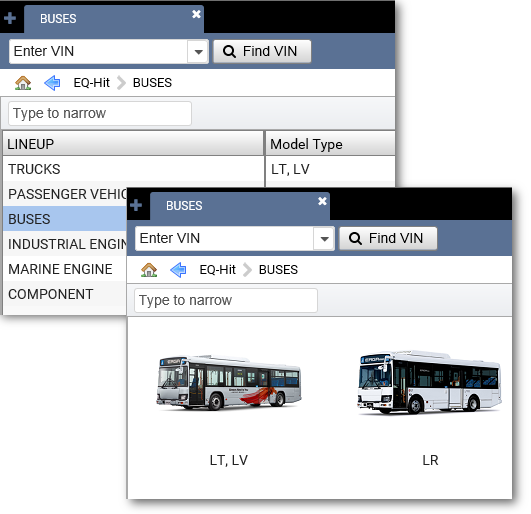

Navigation menus appear in the main section of the EQ-Hit window. Menu choices are displayed as thumbnail images or as lists.

You can change your view at any point by clicking one of the icons in the upper right corner of the screen:

	List mode
	Graphical mode

Note: there is also a button for Expert mode, which changes how EQ-Hit functions.

Click a thumbnail or list item to advance to the next navigation menu. The choice you make determines the contents of the next menu.

Tip: At each menu, type a keyword in the Type to narrow box to quickly locate a menu item. As you type, the display is reduced to only those entries that contain what you entered.

Illustrations and Parts Lists

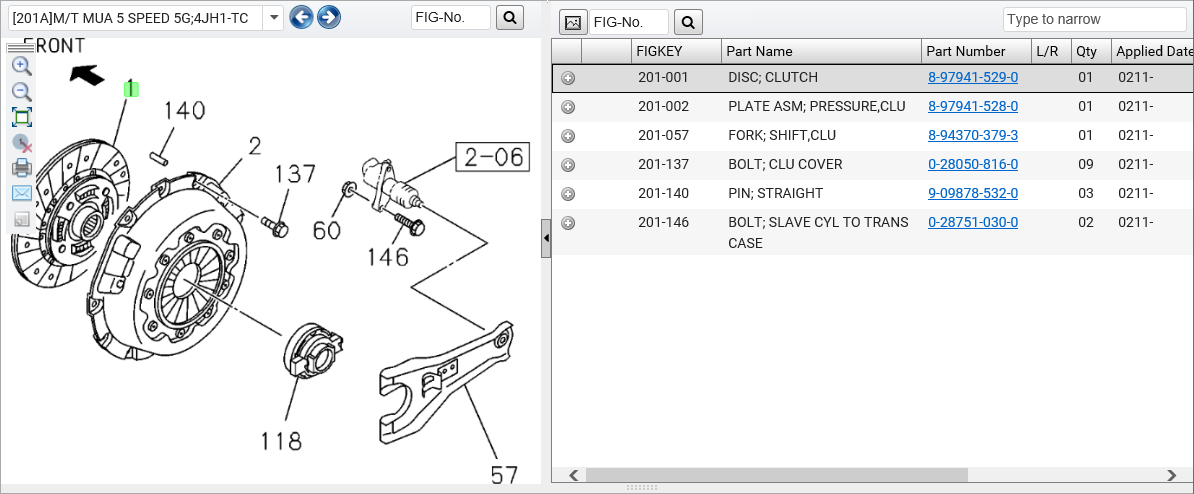

The side-by-side Illustration and Parts List appears when you navigate to a vehicle, section, and figure:

Each part listed in the Parts List includes a numerical FIGKEY which corresponds to a matching number in the illustration.

From the Parts List, you can view part details such as notes, bulletins, and supersession history, and you can add parts to your picklist.

Menu Bar

The menu bar allows you to open a new job or access parts information, online help, or the Settings window.

You can have multiple jobs open at the same time. Click the New Job button to begin a new search, while keeping the old job open.

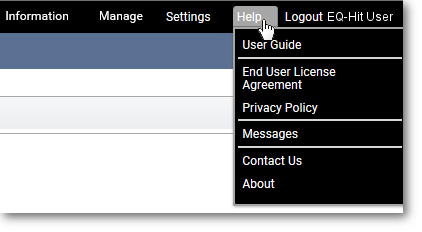

Point to a menu name to view its options:

Tool Bar

The toolbar helps you find catalogs and parts.

Tool	Function
	Enter a VIN into the first field and click the Find VIN button to set the catalog that matches the VIN.
	After setting the catalog with a VIN, click the Quicklist button to view available Quicklists for the current catalog.
	Enter a catalog number and click the Find Catalog button to set the catalog:
	Enter a part number and click the Search button to search for a part number. Once you have selected a catalog, you can use this field to begin a FIG, FIGKEY, or part name search as well.

Navigation Bar

The navigation bar displays the path to your current EQ-Hit location.

Click any location along that path to return to that point.

Click the Home button to begin a new path.

Click the Back button to navigate one level back from the current navigation level.

Picklist

Use the picklist to compile and manage lists of parts.

The picklist is at the bottom of the EQ-Hit screen. To open the picklist, click the icon located in the lower right corner of the EQ-Hit screen.

Item	Function
	Bring the picklist into view
	Open the picklist in full screen mode
	Hide the picklist
